Conformal Cavity Backed V/UHF antennas for integrated future masts
Tower
Suitable for composite and metallic tower
Integration
Low RCS (integrated configurable metamaterial)

CCB ANTENNAS

Broadband UHF/VHF panel antenna with a single main lobe pattern. Optimized for naval V/UHF communication system applications.

The antenna is tested according to MIL-STD-810G

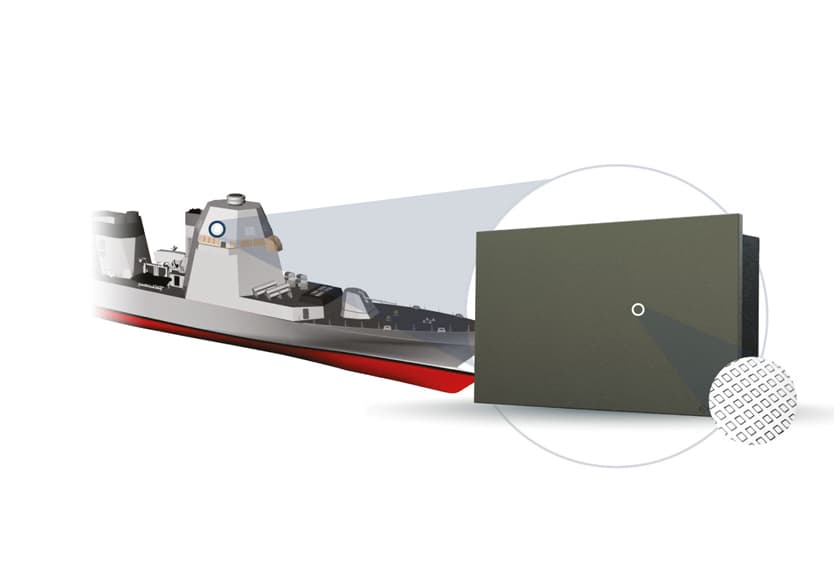

Appropriate to be flush mounted in array configuration with a power diplexer; on dielectric or metallic tower side or on integrated-masts.

  • VSWR < 2:1 FULL BAND
  • GAIN > 3dBi
  • MIL-STD-810G COMPLIANT

Card image
ELECTRICAL SPECIFICATIONS
  • Frequency Band (MHz) 225÷600 UHF (145÷400 VHF)
  • Impedance (ohm) 50
  • VSWR typ. < 2
  • Gain (dBi)[4.5÷7.9]
  • Polarization Linear

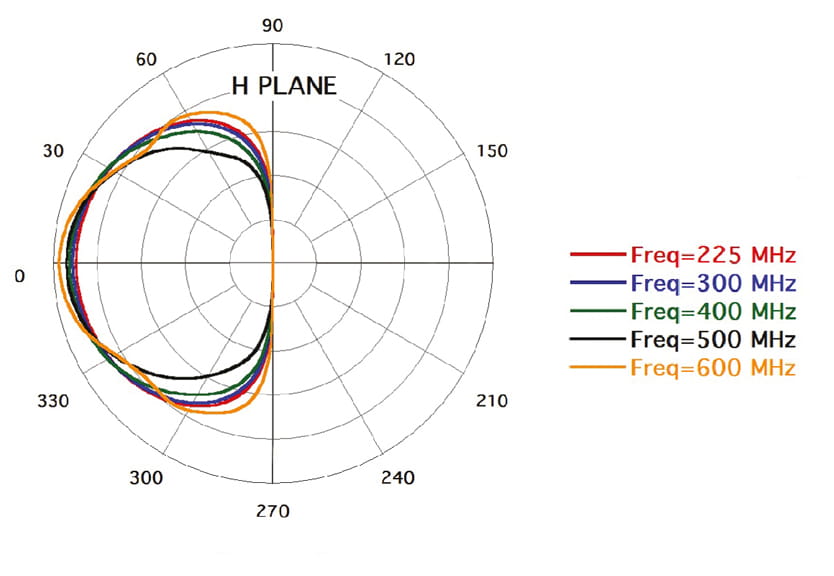

  • HPBW -3dB Horizontal Plane (degree)40 Vertical Plane (degree) 70
  • Continuous max Power (W) 500
  • Lightning Protection DC grounded
  • Op. Temp. Range (°C) -40÷70
Card image
MECHANICAL SPECIFICATIONS
  • Connector Nf
  • Dimensions (mm) 360x645x155 UHF
  • Weight (Kg) 15 (25)
  • Vibration/Shock MIL-STD-810G
  • Wind Resistance150 km/h
  • MaterialAluminium
  • Continuous max Power (W) 500
  • Flush Mounted On dielectric support, On metallic plane
